P&ID diagrams
faster than ever
with the BOM included!
piblaster is the web app for process engineers and plant builders: place P&ID symbols, connect them — and the complete bill of materials grows alongside, automatically.
Fast drawing
Pre-built symbol library following DIN EN ISO 10628 — vessels, pumps, heat exchangers, valves, instruments. One click to place, auto-numbered.
Live bill of materials
Every symbol appears instantly in the BOM with tag, description, size and material. Diagram changes update the list in real time.
Revision-safe
Versions, approvals and project history built in. Multiple teams, clear roles, no external PDM required.

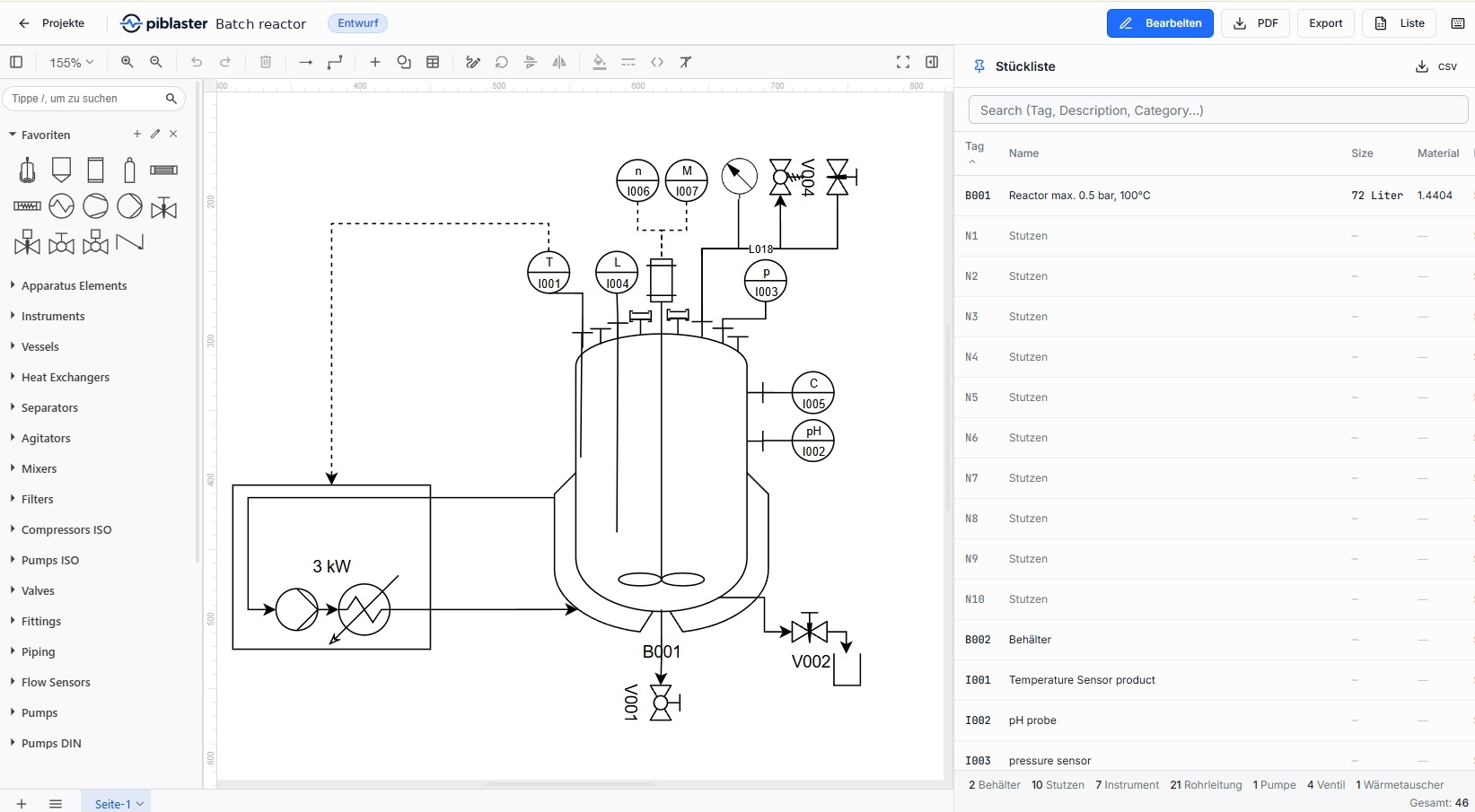

Browser-based, familiar, fast.
Built on a proven diagram engine, optimised for process engineering: symbol palette on the left, canvas in the middle, BOM on the right — all in a single view, no context switching.
- Symbol library with favourites & search
- Multi-page drawings with frames
- PDF and CSV export
- Auto tag bubbles for instruments
- Project locks for concurrent access
- Light & dark mode

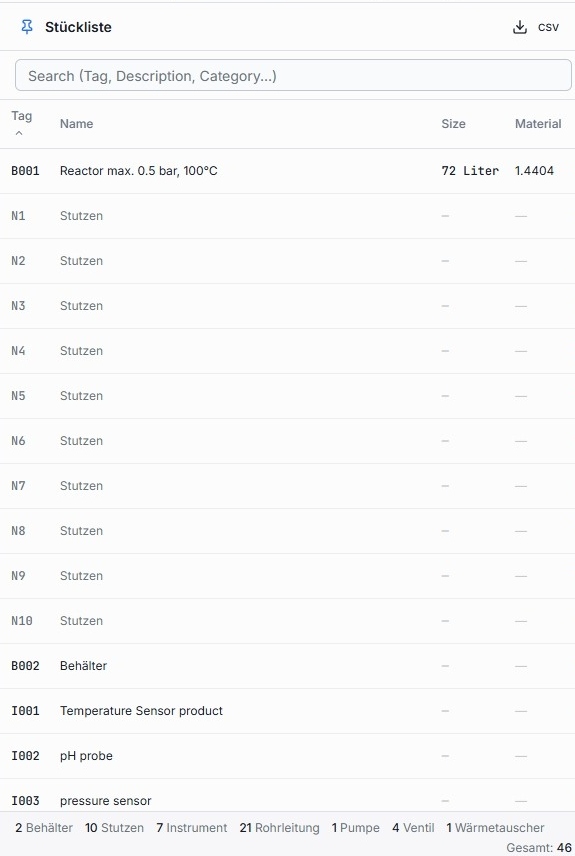

A bill of materials that maintains itself.
As soon as you drag a symbol onto the diagram it appears as a row in the BOM — with a unique tag, category and material fields. Multi-page projects are aggregated, nozzles grouped per apparatus.
- Automatic tag numbering (B001, V002, I003 …)
- Categories: vessels, nozzles, instruments, piping
- Materials & sizes editable per entry
- Live filtering & full-text search
- One-click CSV and PDF export
- Summary row with component overview
Create P&ID diagrams on every operating system — no installation
piblaster runs entirely in your browser. Build P&ID and process flow diagrams per ISO 10628 on Windows, macOS, the iPad, Android tablets and Linux — same project, same symbols, same BOM. No driver, no setup, no per-machine license lock-in.
- WindowsWindows browser
- macOSP&ID for Mac · Apple silicon
- iPadP&ID on iPad · Safari
- AndroidAndroid tablets
- LinuxP&ID on Linux · Ubuntu
P&ID Mac, P&ID Apple, P&ID iPad, P&ID Linux, P&ID Android, P&ID Windows, plant engineering software Mac, PFD Mac.
Built for plant engineering & process design.
Reactors, mixing vessels, dosing systems, hygienic processes — from concept sketch to approved execution documentation.
- DIN EN ISO 10628 symbol set
- Stainless 1.4404 / 1.4571 as default material
- Tri-Clamp & DIN flanges
- Nominal sizes & pressure ratings editable
- Multi-page drawing frames
- Excel and PDF BOM exports
From the workshop floor to the web.
We build apparatus and design plants ourselves — and automate them together with our partners.
While looking for a P&ID tool that truly fits our work, we tried every established option. All of them were too complex for what we needed. None had a genuinely useful bill-of-materials feature. Even printing PDFs and especially exporting the BOM were cumbersome.
And even the complex solutions were far too expensive to roll out to every team member. So we built our own, based on proven open-source components — lean, fast and with a BOM that maintains itself.
We believe piblaster can be a real help to many other engineers, plant builders, teachers and students — which is why we make the tool available to others, too.
“We have been designing and building reactors and pressure vessels for decades. piblaster is exactly the tool we were missing for the P&ID documentation of our plants.”
“It’s impressive how quickly you can put together a P&ID with piblaster. Particularly helpful: the bill of materials is generated at the same time and forms the basis for further project planning — we haven’t seen this in any other tool.”
Transparent. No setup fees.
Per user, per team. 30-day free trial — no credit card needed to start, cancel any time.
- Full feature set for teaching
- Shared course projects
- Activated for the duration of the course
- On request — we set up your team
- All editor features and the symbol library
- Live BOM with PDF/CSV export
- Project versioning with release
- Team collaboration with roles
- Updates and email support
All prices excl. VAT.
Ready to draw your next P&ID in piblaster?
Have an account created or schedule a no-obligation demo.
